Suntour



1977: Ultra 6 freewheels to fit on 120mm OLD hubs.



1979: Ultra 7 freewheels to fit on 126 OLD hubs. List of components available in 1979







1980: Mighty Click rear derailleur/index shift system. Suntour VGT rear derailleurs and Power thumb shifters were popular on early mountain bikes.

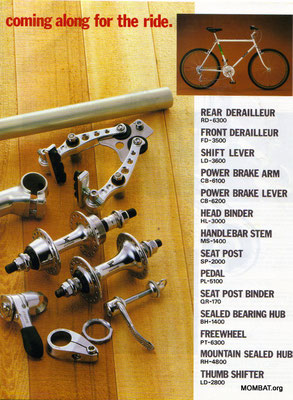

1983 July magazine ad:



Suntour Dirt Component Ensemble: Suntour MounTech front and rear derailleurs, Micro Lite Power Thumb Shifters, XC-II pedals, sealed bearing low flange (36 hole, nutted, 126/100 hubs), sealed bearing bottom bracket, quick release seat binder, New Winner 14/30 corrosion-proof 5 speed freewheel, Z chain, Superbe headset with alloy lock nut, Dia Compe 980 and 280 cantilevers with motorcycle style levers, Sugino forged AT triple crank, 175 mm arms and 26/36/46 rings. Superbe Tech derailleur with enclosed parallelogram mechanism. New Winner freewheels could be used with 5, 6, Ultra 6 or Ultra 7 cogs. Shimano introduces Deore XT components but too late for most new bike spec in.

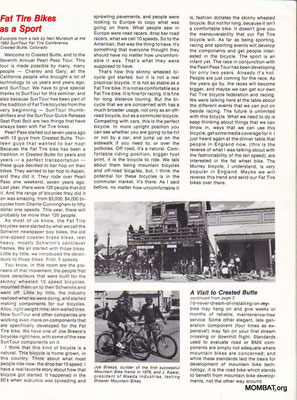

Winter 1983 Fat Tire Special dealer publication.



1985

New XC group introduced in late 1984 for the 1985 model year (see magazine article above from December 1984): Brass pulley were retrofitted to brakes with plastic rollers.  Suntour sales peak with 26 different rear derailleurs.  Shimano introduces SIS index shifting with Dura-Ace components (road).



Rear Derailleurs: XC RD-6300, slant parallelogram, Superbe Tech-GTL RD-5400 with sealed body, Mountech-GTL RD-5500 lower priced derailleur, ARX-GT RD-4500, AR-GT RD-4400 Sealed Bearing Jockey pulleys are available as an option



Front Derailleurs: XC FD-3500 extra wide range, "tuck-away" cable to keep the cable from rubbing the crank, MounTech FD-2700, low normal, super wide range, Le Tech FD-3200, super wide range, top normal, ARX FD-2600, AR FD-2500



Shifters: XC LD-3600 thumb shifter, large aluminum "housing" w/ Suntour XC imprint, adjustable mounting angle, Power Ratchet., Bar-Con LD-1400 bar end shifter, Power LD-2800 thumb shifter, power ratchet, minimalist design, Mighty II LS-2200, original thumb shifter, right side only, power ratchet



Freewheel: New Winner NW-5000 (5 speed), NW-6000 (6 speed), NW-6500 (Ultra 6), NW-7000 (Ultra 7) or PN-6000, PS-6000, US-6000, US-6500, PC-5000, PT-5000



Brakes: XC Power Brakes CB-6000, Roller Cam design, not interchangeable with cantilever mounts, threaded pad stud for adjustments, dual tension springs (long arm spring), compact design that doesn't protrude from the frame, licensed WTB/Cunningham design



Brake Levers: XC CB-6200, large motorcycle style lever, 2.5mm Allen-keyed reach adjuster



Hubs: XC hubs BH-1400 (bolt-on) or BH-2300 (quick release) sealed bearings, dished and beveled flanges, 36 hole, 126 or 130 mm OLD Sealed Bearing hubs BH-4600 (low flange, quick release) or BH-4700 (large flange, quick release) or BH-1000/BH-1100 (low flange, BMX) or BH-1200/BH-1300 (high flange, BMX) all are 36 hole



Bottom Brackets: Direct Sealed DS-220 (130mm alloy lock ring) or DS-230 (130mm steel lock ring) Sealed SA-160 or SS-160 (126 mm spindle)



Pedals: XC-II PL-5100, detachable cages, large "bear trap" style, XC Compe MP-1000 all-terrain version of the Superbe Pro pedal, rectangular cage (silver, gold, blue, red or black cage)



Chain: Z Chain TZ-6000



Seat Post: XC SP-2000 26.4/26.6/26.8/27.0/27.2 300 mm length, 2 bolt head



Stem: XC MS-1400, 75 or 100 mm reach, 2 bolt clamp, small Suntour logo on the face, alloy top with cro-moly quill



Head Binder: HL-3000 headset lock with integrated cable stop, pinch bolt to secure



Pre-release materials for the upcoming XC Sport components (Fall 1985):



1986

Shimano passes Suntour in sales.   New lower priced XC Sport group introduced in late 1985 for the 1986 model year:



Rear Derailleur: XC Sport RD-6900 all the technical features of the XC but with heavier materials



Front Derailleur: XC Sport FD-3800, ultra wide range gearing, low normal



Shifters: XC Sport LD-4700 power ratchet mechanism, stainless steel band type clamp



Hubs: XC Sport RH-5000 (small flange) or RH-4800 (large flange) regular contact sealed bearings, 126 or 130 rear OLD, nutted, 36 hole



Brakes: XC Sport CB-6600 roller cam, internal coil spring instead of the bow spring on the XC version, additional slotted pad height adjustment not found on the XC version, Delrin plastic rollers



Brake Levers: XC Sport CB-6700 almost identical to the XC in appearance but the levers are made of Delrin plastic



Pre-Suntour Browning press release:



1987

AccuShift index shifting introduced on 5 road and 4 mountain groups.  There were many problems with mis-matched parts not indexing properly.  Shimano more tightly controlled the allowable component spec and had a 3 year head start on Suntour.  Shifting options include Index Power Control with positions for regular spaced indexing, Ultra spaced indexing and friction Index Friction Control allows shifting in regular spaced indexing and friction Index Control is standard spaced indexing only Power Control uses the retro friction for better control and Friction Control is just regular friction shifting



Suntour XC 9000



Rear Derailleur: XC 9000 RD-XC00 black "knuckles" with Suntour XC 9000 printed on a black panel, High Low adjustment screws are on the face of the body, 255g



Front Derailleur: XC 9000 FD-XC00 Suntour XC 9000 printed on the cage, black body (silver cage and clamp), 110g



Shifters: see brake levers for other options, LD-3600, friction shifters with power ratchet



Hubs: XC 9000 HB-XC 10 (nutted front, 36 hole) HB-XC 10 (nutted rear freewheel, 36 hole, 126 mm or 130mm) or HB-XC00 (quick release front, 36 hole) HB-XC00 (quick release rear, freewheel type, 36 hole, 126 mm or 130 mm) all hubs have small Suntour XC 9000 graphics, small flange, sealed cartridge bearings and cro-moly axles



Brakes: XC 9000 BA-XC00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, nicely polished finish with small Suntour XC 9000 graphic, 570g



Brake Levers: XC 9000 CB-6200 has Suntour Power stamped on the lever blade, 306g CL-XC10 which incorporated the index thumb shifter onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter CL-XC00 incorporates the friction shifters onto the brake lever body



Freewheels: Winner Pro Ultra 7, Ultra 6, standard 6 and standard 5 speed, Winner lever available in same formats as Pro freewheels



Other: PL-5100 bear-trap style pedals, XC-9000 stem MS-1400 (2 bolt front, 1" quill, 75mm or110 mm extension), HL-3000 head binder cable stop, SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), QR-170 seat post quick release binder, PL-5700 Compe pedal (square cage, sealed cartridge bearings), SP-XC 00 seat post, forged head



Suntour XC Sport 7000



Rear Derailleur: XC Sport 7000 RD-XS00 polished "knuckles" with Suntour XC Sport 7000 on the black body, 292g



Front Derailleur: XC Sport 7000 FD-XS00-GX (22 tooth capacity) and -GT (20 tooth capacity) Suntour XC Sport 7000 printed on the cage, black body (silver cage and clamp)



Shifters: LD-4700, friction thumb shifters with power ratchet, see brake levers for combination levers



Hubs: XC Sport 7000 RH-4800 (high flange, nutted, 36 hole front and rear set, 126mm or 130mm rear) RH-5000 (nutted front and rear set, 36 hole, small flange, 126mm or 130mm rear)



Brakes: XC Sport 7000 CB-6600 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, has large round "dimples" on the arms (4 per side), 492g



Brake Levers:  XC 7000 CB-6700 resin lever, 276g CL-XS10 which incorporated the index thumb shifter onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter CL-XS00 incorporates the friction shifters onto the brake lever body



Other: SP-XS00 seat post, forged head with a steel upper clamp



1988

Suntour XC 9000



Rear Derailleur: XC 9000 RD-XC00 black "knuckles" with Suntour XC 9000 printed on a black panel, High Low adjustment screws are on the face of the body



Front Derailleur: XC 9000 FD-XC00-GX Suntour XC 9000 printed on the cage, black body (silver cage and clamp)



Shifters: see brake levers



Hubs: XC 9000 HB-XC 10 (nutted front, 36 hole) HB-XC 10 (nutted rear freewheel, 36 hole, 126 mm or 130mm) or HB-XC00 (quick release front, 36 hole) HB-XC00 (quick release rear, freewheel type, 36 hole, 126 mm or 130 mm) all hubs have small Suntour XC 9000 graphics, small flange, sealed cartridge bearings and cro-moly axles



Brakes: XC 9000 BA-XC00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, nicely polished finish with small Suntour XC 9000 graphic



Brake Levers: XC 9000 BL-XC00 still a large motorcycle style lever, reach adjuster, , coated lever blade, black also available was the CL-XC01 which incorporated the index thumb shifter onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter



Other: PL-5100 bear-trap style pedals, XC-9000 stem MS-1400 (2 bolt front, 1" quill, 75mm or110 mm extension), HL-3000 head binder cable stop, SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), QR-170 seat post quick release binder, PL-5700 Compe pedal (square cage, sealed cartridge bearings)



Suntour XC Sport 7000



Rear Derailleur: XC Sport 7000 RD-XS00 polished "knuckles" with Suntour XC Sport 7000 on the black body



Front Derailleur: XC Sport 7000 FD-XS00-GX Suntour XC Sport 7000 printed on the cage, black body (silver cage and clamp)



Shifters: SL-XS00-CH, right hand index/friction thumb shifters



Hubs: XC Sport 7000 RH-4800 (high flange, nutted, 36 hole front and rear set, 126mm or 130mm rear) RH-5000 (nutted front and rear set, 36 hole, small flange, 126mm or 130mm rear)



Brakes: XC Sport 7000 CB-6600 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, has large round "dimples" on the arms (4 per side)



Brake Levers:  no specific brake lever listed



Suntour XCD 6000



Rear Derailleur: XCD 6000 RD-XD00-GX gray "knuckles" with Suntour XCD 6000 printed on a black link



Front Derailleur: XCD 6000 FD-XD00-GX Suntour XCD printed on the body, black body and clamp



Shifters: SL-XD00-CH, index/friction rear, steel handlebar clamp, large covers on the levers also see brake levers for brake shift lever combination



Hubs: XCD 6000 HB-XD 10 (nutted front and rear, 36 holes, freewheel style, 126mm or 130 mm rear)  or HB-XD00 (quick release hubs, 36 holes, 126mm or 130mm rear, freewheel style)  all hubs have small  XCD  graphics, small flange, sealed cup and cone bearings, gray color and cro-moly axles



Brakes: XCD 6000 BA-XD00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, grey  finish with XCD stamped roller plate also available is the BA-XD10 cantilever brake by Dia Compe, grey finish, external spring design



Brake Levers: XD 6000 BL-XD00 still a large motorcycle style lever, reach adjuster, , coated lever blade, black (uses the same body as the 9000 series, no coating on the blade and minor hardware differences) also available was the CL-XD01 which incorporated the index thumb shifter onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter (same basic design as the 9000 except with the 6000 shifters)



Crank: XCD 6000 CW-XD00, grey finish, triple chain rings, inner 2 rings are oval shaped, 110/74 mm BCD, 28/38/48 rings, 170 or 175mm length with bottom bracket BB-XD00, 68/70mm width



Other: PL-XD00 large square pedals (black/grey), SP-SU00-L seat post (300 mm length, 25.0, 26.4, 26.6, 27.0, 27.2 diameters)



 XCD 4050, Alpha 3040, Alpha 2000 and AT1000 parts available.  Winner Pro, Winner and Alpha freewheels for all groups.



July 1988 licensing of the Browning BEAST by Suntour:



1989

Suntour XC 9000



Rear Derailleur: New XC 9000 RD-XC10-SSB (short cage)-GXB (long cage) black "knuckles" with Suntour XC 9000 Accu Shift printed on a black panel, High Low adjustment screws are hidden



Front Derailleur: XC 9000 FD-XC00-GXH Suntour XC 9000 printed on the cage, black body (silver cage and clamp)



Shifters: NEW XC 9000 SL-XC00 (6 or 7 speed index models), alloy clamp, also see brake levers for combination shift/brake levers



Hubs: XC 9000 NEW FH-XC10-U7 (7 speed 13/28 or 13/30) or R6 (6 speed 13/28 or 13/30) cassette hub (quick release, 130mm, 32 or 36 hole with HB-XC 10 (nutted front, 36 hole) HB-XC 10 (nutted rear freewheel, 36 hole, 126 mm or 130mm) or HB-XC00 (quick release front, 36 hole) HB-XC00 (quick release rear, freewheel type, 36 hole, 126 mm or 130 mm) all hubs have small Suntour XC 9000 graphics, small flange, sealed cartridge bearings and cro-moly axles



Brakes: XC 9000 BA-XC00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, nicely polished finish with small Suntour XC 9000 graphic plus NEW CT-XC00 cantilever brake (low profile, black, Suntour XC 9000 printed on one arm) plus NEW CT-XC10 (same as above plus SE self-energizing mechanism)



Brake Levers: XC 9000 BL-XC00 still a large motorcycle style lever, reach adjuster,  coated lever blade, black also available was the NEW CL-XC02 which incorporated the index thumb shifter (6 or 7 speed models) onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter



Cranks: NEW XC 9000 CW-XC00, 48(round)/38(oval)/28(oval), 170 or 175mm arms, clear anodized arms with black rings



Other: NEW PL-XC10 pedals (Compe type cage, single side w/ toe flip), XC-9000 stem MS-1400 (2 bolt front, 1" quill, 75mm or110 mm extension), HL-3000 head binder cable stop, SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), QR-170 seat post quick release binder, Chain SP-6000 (gold or silver), Free wheel FW-XC00-R6 (6 speed) or 7 speed Winner Pro WP-7000



Suntour XCD 6000



Rear Derailleur: XCD 6000 RD-XD00-GXB gray  "knuckles" with Suntour XCD 6000 Accu Shift printed on a black link



Front Derailleur: XCD 6000 FD-XD00-GXH Suntour XCD printed on the body, black body and clamp



Shifters: New SL-XD00-7U (7 speed) or R6 (6speed), index/friction rear, steel handlebar clamp, also see brake levers for brake shift lever combination



Hubs: NEW FH-XD10-U7 (freehub, 7 speed, 130 mm, 32 or 36 hole) or R6 (freehub, 6 speed, 130 mm, 32 or 36 hole) XCD 6000 HB-XD 10 (nutted front and rear, 36 holes, freewheel style, 126mm or 130 mm rear)  or HB-XD00 (quick release hubs, 36 holes, 126mm or 130mm rear, freewheel style)  all hubs have small  XCD  graphics, small flange, sealed cup and cone bearings, gray color and cro-moly axles



Brakes: XCD 6000 BA-XD00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, grey  finish with XCD stamped roller plate also available is the NEW CT-XD10 low profile cantilever brake, grey finish



Brake Levers: XD 6000 BL-XD00 still a large motorcycle style lever, reach adjuster, , coated lever blade, black (uses the same body as the 9000 series, no coating on the blade and minor hardware differences) also available was the CL-XD01 (6 speed) or CL-XD02-U7 (7 speed) which incorporated the index thumb shifter onto the brake lever body, 6-way shift lever position adjuster, index/friction right shifter (same basic design as the 9000 except with the 6000 shifters)



Crank: XCD 6000 CW-XD00, grey finish, triple chain rings, inner 2 rings are oval shaped, 110/74 mm BCD, 28/38/48 rings, 170 or 175mm length with bottom bracket BB-XD00, 68/70mm width



Other: PL-XD00 large square pedals (black/grey), SP-SU00-L seat post (300 mm length, 25.0, 26.4, 26.6, 27.0, 27.2 diameters)



XCE 4050/4051, XCM 3040, Alpha 2000, Alpha 1500, AT1000.  Winner Pro, Winner and Alpha freewheels for all groups.



SR Sakae

Cranks FX SLP (super low profile) cranks (FLC-T310 with round rings or FLC-T350 with Oval Tech rings, both in pearl white or clear gray arms), XCE (flush surface, no exposed bolt head) cranks (SEC-T323XC Suntour Accu Shift compatible, oval small and middle rings or SEC-T322XC same but not listed as Suntour compatible) XCM (same as XCE except steel rings) Sakae SX cranks (inexpensive), Stems: New bonded Pipe Stem (MTS-135) bonded tube between the quill and clamp (100, 120, 140 mm extensions, 1" diameter), also forged FXS-200, MTS-P300 and MTS-300 stems Handlebars: MTB-216/217/218 alloy bulge center bars (217 riser) Pedals: MTP-126BL Low Fat pedals, SP-452/BL (black) one piece alloy bear trap style Seat Posts: MTE-350 spring loaded quick adjust post (spring sits on the water bottle cage bolt), MTE-300 alloy post (brown or black), MTE-300 (silver w/ height marks), MTE-101 (quick release fore/aft adjustments)



1990

Suntour XC Pro



Rear Derailleur: New XC Pro RD-XP00-GTB (short cage)-GXB (long cage)  Suntour XC Pro printed on a derailleur body



Front Derailleur: New XC Pro FD-XP00-GXH



Shifters: NEW XC Pro SL-XP00 (6 or 7 speed index models), alloy clamp, New X-Press under bar push button shifters SL-PP10 (6 or 7 speed available)



Hubs: XC Pro NEW FH-XP00-U7 (7 speed) or R6 (6 speed) cassette hub (quick release, 130mm (6 speed) and 135mm (7 speed), 32 or 36 hole with HB-XP 00 (quick release front,32 or  36 hole) HB-XP 00 (quick release rear freewheel,32 or 36 hole, 135 mm or 130mm)  all hubs are small flange, sealed cartridge bearings, Grease Guard and cro-moly axles



Brakes: XC Pro CT-XP00 cantilever brake (low profile, black) plus NEW CT-XP10 (same as above plus SE self-energizing mechanism)



Brake Levers: New XC Pro  BL-XP00 (4 finger) and -S (2 finger)  reach adjuster, coated lever blade, black, B.R.S. mechanism (Balanced Response System, spring assisted)



Cranks: NEW XC Pro CW-XP00, Power Rings 46/36/26 or 24, 170, 175 or 180mm arms, 110/74 mm BCD  with bottom bracket BB-XP00 with Grease Guard



Headset: New XC Pro HS-XP00 1 1/8" sealed



BEAST (Browning Electronic Accu-Shift Transmission):  The Browning electronic shifting is now available and included the crank BT-CW00 in 170 or 175 arms with 28/38/48 rings with 110/74 mm BCD and shifted by BT-SB00 with BT-BU00 battery housing, BB-XC00 or BB-XP00 bottom brackets and BT-SA00 gear selector assembly



Other: NEW PL-XP00 pedals (Compe type cage, cartridge bearing, cro-moly axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), New XP-00 seat post quick release binder, Chain CH-AP00, Free wheel FW-WT10-S7U (7 speed) or -SR6 (6 speed)



Suntour XC Comp



Rear Derailleur: New XC Comp RD-XC20-GTB (short cage)-GXB (long cage)  Suntour XC Comp printed on a derailleur body



Front Derailleur: XC Comp FD-XC10-GXH



Shifters: XC Comp SL-XC10 (6 or 7 speed index models), alloy clamp, New X-Press under bar push button shifters SL-PP10 (6 or 7 speed available)



Hubs: XC Comp NEW FH-XC11-U7 (7 speed) or R6 (6 speed) cassette hub (quick release, 130mm (6 speed) and 135mm (7 speed), 32 or 36 hole with HB-XC 01F (quick release front,32 or  36 hole) HB-XC 01R (quick release rear freewheel,32 or 36 hole, 135 mm or 130mm)  all hubs are small flange, sealed cartridge bearings and cro-moly axles



Brakes: XC Comp CT-XC01 cantilever brake (low profile, black) plus NEW CT-XC11 (same as above plus SE self-energizing mechanism), BA-XC00 roller cam continues at the Comp level



Brake Levers:  no specific Comp levers this year so use New XC Pro  BL-XP00 (4 finger) and -S (2 finger)  reach adjuster, coated lever blade, black, B.R.S. mechanism (Balanced Response System, spring assisted)



Cranks: NEW XC Comp CW-XC00, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC00



Headset: HS-SA00 1" sealed bearings



Other: NEW PL-XC20 pedals (Compe type cage, , cup and cone bearing, Boron steel axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), New XP-00 seat post quick release binder, Chain CH-AP00, Free wheel FW-WT10-S7U (7 speed) or -SR6 (6 speed)



Suntour XCD 6000



Rear Derailleur: New XCD 6000 RD-XD10-GTB (short cage) and GXB (long cage)



Front Derailleur: New XCD 6000 FD-XD10-GXH



Shifters: New SL-XD10-7U (7 speed) or R6 (6speed), index/friction rear, steel handlebar clamp, also see brake levers for brake shift lever combination, New X-Press under bar push button shifters SL-PP10 (6 or 7 speed available)



Hubs: NEW FH-XD11-U7 (freehub, 7 speed, 130 mm, 32 or 36 hole) or R6 (freehub, 6 speed, 130 mm, 32 or 36 hole) XCD 6000 HB-XD 01 (nutted front and rear, 36 holes, freewheel style, 126mm or 130 mm rear)  or HB-XD00 (quick release hubs, 36 holes, 126mm or 130mm rear, freewheel style)  all hubs have small  XCD  graphics, small flange, sealed cup and cone bearings, gray color and cro-moly axles



Brakes: XCD 6000 BA-XD00 roller cam, internal coil spring instead of the bow spring, brake pad is height adjustable, grey  finish with XCD stamped roller plate also available is the NEW CT-XD11 low profile cantilever brake, grey finish or the NEW CT-XD20 (Self Energizing model)



Brake Levers: XD 6000 BL-XD10 (4 finger) and BL-XD10-S (2 finger)



Crank: XCD 6000 CW-XD00, grey finish, triple chain rings,  110/74 mm BCD, 24 or 26/36/46 rings, 170 or 175mm length with bottom bracket BB-XC00



Headset: HS-SA00 1" sealed bearings



Other: PL-XD10 pedals (black/grey), SP-SU00-L seat post (300 mm length, 25.0, 26.4, 26.6, 27.0, 27.2 diameters) CH-AP10 chain, seat post quick release QR-XP00



Other component groups include X-1 and X-1 Chroma (neon inserts for components), XCE(xpert), XCM(aster), XCT, AC2000, AC1000 and Allegro



Licensed the WTB Grease Guard system to inject fresh Lube into components without disassembly.   Licensed the Pederson self-energizing cantilever brake.   This was a very powerful brake but was overly expensive to produce.   Mori Industries purchases Maeda Suntour and combined it with Sakae Ringyo to form SR Suntour.



1991

Suntour XC Pro



Rear Derailleur: XC Pro RD-XP00-GTB (short cage)-GXB (long cage)  Suntour XC Pro printed on a derailleur body



Front Derailleur: XC Pro FD-XP00-GXH 28.6 or 31.8 mm clamp



Shifters: NEW XC Pro SL-XP00 (7 speed index models), alloy clamp, New X-Press under bar push button shifters SL-XP10 (7 speed)



Hubs: XC Pro NEW FH-XP01-U7 (7 speed)  cassette hub (quick release, 130 or 135mm, 32 or 36 hole with HB-XP 01 (quick release front,32 or  36 hole) HB-XP 01 (quick release rear freewheel,32 or 36 hole, 135 mm or 130mm)  all hubs are small flange, sealed cartridge bearings, Grease Guard and cro-moly axles



Brakes: XC Pro CT-XP00 cantilever brake (low profile, black) plus NEW CT-XP10 (same as above plus SE self-energizing mechanism)



Brake Levers: XC Pro  BL-XP00-N (4 finger) and -S (2 finger)  reach adjuster, coated lever blade



Cranks: NEW XC Pro CW-XP01, Power Rings 46/36/26 or 24, 170, 175 or 180mm arms, 110/74 mm BCD  with bottom bracket BB-XP00 with Grease Guard



Headset: New XC Pro HS-XP01-J (Japanese) or -I (Italian/English) all with Grease Guard



BEAST (Browning Electronic Accu-Shift Transmission):  The Browning electronic shifting is now available and included the crank BT-CW00 in 170 or 175 arms with 28/38/48 rings with 110/74 mm BCD and shifted by BT-SB00 with BT-BU00 battery housing, BB-XC00 or BB-XP00 bottom brackets and BT-SA00 gear selector assembly



Other: NEW PL-XP01 pedals (Compe type cage, cartridge bearing, cro-moly axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), New XP-00 seat post quick release binder, Chain CH-AP10



Suntour XC Comp



Rear Derailleur: XC Comp RD-XC20-GTB (short cage)-GXB (long cage)  Suntour XC Comp printed on a derailleur body



Front Derailleur: XC Comp FD-XC10-GXH 28.6 or 31.8 mm clamp



Shifters:  XC Pro SL-XP00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XP10 (7 speed) uses the Pro shifters, no specific Comp shifter



Hubs: XC Comp FH-XC00-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XC 02F (quick release front, 32 or  36 hole)



Brakes: XC Comp CT-XC01 cantilever brake (low profile, black) plus CT-XC11 (same as above plus SE self-energizing mechanism)



Brake Levers:   XC Comp  BL-XC01-N (4 finger) and -S (2 finger)  reach adjuster, coated lever blade, black, B.R.S. mechanism (Balanced Response System, spring assisted)



Cranks: XC Comp CW-XC01, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian)



Headset: no specific Comp headset listed



Other: PL-XC20 pedals (Compe type cage, , cup and cone bearing, Boron steel axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), Chain CH-AP10, Cassette CS-AP00-S7 7 speed only



Suntour XC LTD



Rear Derailleur: XC LTD RD-XL00-GXB (long cage)  Suntour XC LTD printed on a derailleur body



Front Derailleur: XC LTD FD-XL00-GXH 28.6 or 31.8 clamp



Shifters:  XC LTD SL-XL00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XL10 (7 speed)



Hubs: XC Comp FH-XL00-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XL 00F (quick release front, 32 or  36 hole), HB-XL00-R freewheel rear hub in 130 or 135mm with 32 or 36 holes



Brakes: XC LTD CT-XL00 cantilever brake (low profile, silver)



Brake Levers:   XC LTD  BL-XL00-S (2 finger)  reach adjuster, coated lever blade



Cranks: XC LTD CW-XL00, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian)



Headset: no specific LTD headset listed



Other: PL-XL00 pedals (Compe type cage), Chain CH-AP20, freewheel FW-AL10K7 (7 speed freewheel), cassette CS-AP00-K7 (7 speed cassette)



1991: other component groups include X-1 and X-1 Chroma (neon inserts for components),  XCM(aster), XCE,  XCT and XCU, top pull front derailleurs labeled Suntour (no group label), Micro Lite hubs and bottom bracket



1992

Introduces Micro-Drive components with smaller chain rings, smaller rear cogs and shorter cage derailleurs and shorter chain.  The effective gear ratios were approximately the same with reduced weight and better ground clearance.  Shimano copied this design in 1994.   PowerFlo rear cogs for improved rear shifting.  Last catalog that lists Suntour separately, not as SR Suntour.



Suntour XC Pro both regular and Micro Drive components available



Rear Derailleur: XC Pro RD-XP00-GTB (short cage)-GXB (long cage)-SSB (Micro Drive)  Suntour XC Pro printed on a derailleur body



Front Derailleur: XC Pro FD-XP00-GXH 28.6 or 31.8 mm clamp



Shifters: XC Pro SL-XP00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XP10 (7 speed) and NEW SL-XP20 under bar wishbone shifter



Hubs: XC Pro FH-XP02-7 (7 speed)  or NEW FH-XP20-7 (Micro Drive) cassette hubs (quick release, 130 or 135mm, 32 or 36 hole with HB-XP 01 (quick release front,32 or  36 hole)  all hubs are small flange, sealed cartridge bearings, Grease Guard and cro-moly axles



Brakes: XC Pro CT-XP20 cantilever brake (super low profile, black) plus NEW CT-XP11 (same as above plus SE self-energizing mechanism)



Brake Levers: XC Pro  BL-XP00-S (2 finger)  reach adjuster, coated lever blade



Cranks: XC Pro CW-XP01, Power Rings 46/36/26 or 24, 170, 175 or 180mm arms, 110/74 mm BCD  with bottom bracket BB-XP00 with Grease Guard or NEW CW-XP10 (Micro Drive) with 170/175/177.5 arms with 20/32/42 rings, 94/56 mm BCD and BB-SL10 bottom bracket,  73mm bottom brackets now available



Headset: New XC Pro HS-XP02-J (Japanese) or -I (Italian/English) and OS (oversize) all with Grease Guard



BEAST (Browning Electronic Accu-Shift Transmission):  The Browning electronic shifting is no longer listed in the catalog



Other: NEW PL-XP02 pedals (Compe type cage, cartridge bearing, cro-moly axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), SP-XP10 oversize seat post (29.8 and 30.2) New XP-00 seat post quick release binder, Chain CH-AP01, Cassette cogs CS-AP20 (Micro Drive) or CS-AP10



Suntour XC Comp



Rear Derailleur: XC Comp RD-XC20-GTB (short cage)-GXB (long cage)-SS (Micro Drive) Suntour XC Comp printed on a derailleur body



Front Derailleur: XC Comp FD-XC01-GXH 28.6, 34.9 or 31.8 mm clamp



Shifters:  XC Pro SL-XP00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XP10 (7 speed) uses the Pro shifters, or NEW SL-XP20 under bar wishbone type shifter, no specific Comp shifter



Hubs: XC Comp FH-XC02-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XC 02F (quick release front, 32 or  36 hole) or NEW FH-XC11 in 130/135 and 32/36 holes for Micro Drive



Brakes: XC Pro CT-XP20 cantilever brake (super low profile, black) plus CT-XP11 (same as above plus SE self-energizing mechanism)



Brake Levers:   XC Comp  BL-XC01-S (2 finger)  reach adjuster, coated lever blade



Cranks: XC Comp CW-XC01, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian) and NEW CW-XC11 (Micro Drive) 42/32/20 rings with 94/56 mm BCD in 170 or 175 mm arms,  73mm bottom brackets now available



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XC20 pedals (Compe type cage, , cup and cone bearing, Boron steel axle, single side w/ toe flip),   SP-XP00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), SP-XP10 oversize seat post (29.8 and 30.2), Chain CH-AP11, Cassette CS-AP20-S7 7 speed only or CS-AP20 for Micro Drive



Suntour XC LTD



Rear Derailleur: XC LTD RD-XL00-GXB (long cage)  Suntour XC LTD printed on a derailleur body



Front Derailleur: XC LTD FD-XL00-GXH 28.6, 34.9 or 31.8 clamp



Shifters:  XC LTD SL-XL00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XL10 (7 speed) and NEW SL-XP20 wishbone type shifter



Hubs: XC Comp FH-XL01-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XL 00F (quick release front, 32 or  36 hole)



Brakes: XC LTD CT-XL00 cantilever brake (low profile, silver)



Brake Levers:   XC LTD  BL-XL00-S (2 finger)  reach adjuster, coated lever blade



Cranks: XC LTD CW-XL00, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian)



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XL00 pedals (Compe type cage), Chain CH-AP11,  cassette CS-AP10-K7 (7 speed cassette)



Other component groups include X-1, XCE, XCM(aster), XCT and XCU, top pull front derailleurs labeled Suntour (no group label), Micro Lite hubs and bottom bracket



1993

Introduction of the S1 chain stay mounted derailleur.   Recall or 300,000 coaster brakes due to a bad spring.  New 8 speed option for Pro and Comp.  Power hanger introduced to increase braking efficiency.  New Micro Claw clipless pedal system.  New Twist shifter available, integrated into brake lever.  New sealed cartridge bearing bottom bracket available from SR Sakae.  First catalog as SR Suntour.



Suntour XC Pro both regular and Micro Drive components available



Rear Derailleur: XC Pro RD-XP01-GTB (short cage)-GXB (long cage)-SSB (Micro Drive)  Suntour XC Pro printed on a derailleur body, 7 and 8 speed compatible



Front Derailleur: XC Pro FD-XP01-GXH 28.6, 34.9 or 31.8 mm clamp



Shifters: XC Pro SL-XP01 (7/8 speed index models), alloy clamp, X-Press under bar push button shifters SL-XP10 (7 speed) and SL-XP20 (7 speed) under bar wishbone shifter



Hubs: XC Pro FH-XP02-7 (7 speed)  or FH-XP20-8-7 (Micro Drive) cassette hubs (quick release, 130 (7 speed only) or 135mm (7 or 8 speed), 32 or 36 hole with HB-XP 01 (quick release front,32 or  36 hole) all hubs are small flange, sealed cartridge bearings, Grease Guard and cro-moly axles



Brakes: XC Pro CT-XP01 cantilever brake (super low profile, silver) plus CT-XP11 (same as above plus SE self-energizing mechanism)



Brake Levers: XC Pro  BL-XP01 reach adjuster, non-coated lever blade



Cranks: XC Pro CW-XP01, Power Rings 46/36/26 or 24, 170, 175 or 180mm arms, 110/74 mm BCD  with bottom bracket BB-XP00 with Grease Guard or CW-XP10 (Micro Drive) with 170/175/177.5 arms with 20/32/42 rings, 94/56 mm BCD and BB-SL10 bottom bracket, bottom brackets now available in 73 mm width



Headset: New XC Pro HS-XP02-J (Japanese) or -I (Italian/English) and OS (oversize) all with Grease Guard



Other: PL-XP02 pedals (Compe type cage, cartridge bearing, cro-moly axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2),  XP-00 seat post quick release binder, Chain CH-AP01/02, Cassette cogs CS-AP20 8/7 (Micro Drive) or CS-AP10-7, NEW clipless pedal PL-XP10 (Ti axle) and PL-XP11 (Cro-moly axle)



Suntour XC Comp



Rear Derailleur: XC Comp RD-XC01-GTB (short cage)-GXB (long cage)-SS (Micro Drive) Suntour XC Comp printed on a derailleur body



Front Derailleur: XC Comp FD-XC01-GXH 28.6, 34.9 or 31.8 mm clamp



Shifters:  XC Pro SL-XP01 (8/7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XP10 (7 speed) uses the Pro shifters, or NEW SL-XP20 (7 speed) under bar wishbone type shifter, no specific Comp shifter



Hubs: XC Comp FH-XC02-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XC 02F (quick release front, 32 or  36 hole) or FH-XC11 in 130/135 and 32/36 holes for Micro Drive, 130mm for 7 speed and 130 or 135 for 8 speed



Brakes: XC Pro CT-XC02 cantilever brake (super low profile, black) plus CT-XP11 (with SE self-energizing mechanism)



Brake Levers:   XC Comp  BL-XC02  reach adjuster, non-coated lever blade



Cranks: XC Comp CW-XC01, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian) and CW-XC11 (Micro Drive) 42/32/20 rings with 94/56 mm BCD in 170 or 175 mm arms, 73mm bottom brackets now available



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XC20 pedals (Compe type cage, , cup and cone bearing, Boron steel axle, single side w/ toe flip),   SP-XP00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2), Chain CH-AP12/11, Cassette CS-AP10  7 speed only or CS-AP20 8 or 7 for Micro Drive



Suntour XC LTD



Rear Derailleur: XC LTD RD-XL00-GXB (long cage)  Suntour XC LTD printed on a derailleur body



Front Derailleur: XC LTD FD-XL00-GXH 28.6, 34.9 or 31.8 clamp



Shifters:  XC LTD SL-XL00 (7 speed index models), alloy clamp, X-Press under bar push button shifters SL-XL10 (7 speed) and NEW SL-XP20 wishbone type shifter



Hubs: XC Comp FH-XL01-U7 (7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XL 00F (quick release front, 32 or  36 hole)



Brakes: XC LTD CT-XL00 cantilever brake (low profile, silver)



Brake Levers:   XC LTD  BL-XL00-S (2 finger)  reach adjuster, coated lever blade



Cranks: XC LTD CW-XL00, Power Rings 46/36/26 or 24, 170 or 175mm arms, 110/74 mm BCD  with bottom bracket BB-XC01 (English or Italian)



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XL00 pedals (Compe type cage), Chain CH-AP11,  cassette CS-AP10-K7 (7 speed cassette)



Suntour XC Expert



Rear Derailleur: XC Expert RD-XX00-GXB (long cage)-GTB (mid cage)  Suntour XC Expert printed on a derailleur body in an oval shape



Front Derailleur: XC Expert FD-XX00-GXH 28.6, 34.9 or 31.8 clamp



Shifters:  XC Expert SL-XX00 (8/7 speed index models), or NEW TS-XX00 twist shifter for 8/7 speeds



Hubs: XC Expert  FH-XX00 (8/7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XL 00F (quick release front, 32 or  36 hole)



Brakes: XC Expert CT-XX00 cantilever brake (low profile, silver)



Brake Levers:   XC Expert  BL-XX00  reach adjuster, non-coated lever blade



Cranks: XC Expert CW-XX00,Micro Drive20/32/42, 170 or 175mm arms, 94/56mm BCD  with bottom bracket BB-CB00 (English or Italian)



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XL00 pedals (Compe type cage), Chain CH-AP12/11,  cassette CS-AP20 (8 or 7 speed cassette)



Other component groups include X-1, XCE, XCM(aster), XC Sport (new for 1993), top pull front derailleurs labeled Suntour (no group label), Micro Lite hubs and bottom bracket.  Suspension specific front hub HB-SU00-F



1994

Express shifters disappear (yeah).  New Ergo-Tec shift/brake lever combination.  Something of a twist shifter with paddles.  Self Energizing brakes disappear.  All cranks go to Micro Drive.  XC Comp and XC LTD component groups are gone.  Looks like SR is cutting way back on the number of groups and options.



Suntour XC Pro Micro Drive7 or  8 speed  components available



Rear Derailleur: XC Pro RD-XP01-GTB (short cage)-GXB (long cage)-SSB (Micro Drive)  Suntour XC Pro printed on a derailleur body, 7 and 8 speed compatible



Front Derailleur: XC Pro FD-XP01-GXH 28.6, 34.9 or 31.8 mm clamp or FD-TP10-GXH top pull



Shifters: XC Pro SL-XP01 (7/8 speed index models), alloy clamp, also compatible with the NEW ST-ES01 Ergo-Tec shifter.



Hubs: XC Pro FH-XP20-8-7 (Micro Drive) cassette hubs (quick release, 130 (7 speed only) or 135mm (7 or 8 speed), 32 or 36 hole with HB-XP 01 (quick release front, 32 or  36 hole) all hubs are small flange, sealed cartridge bearings, Grease Guard and cro-moly axles



Brakes: XC Pro CT-XP01 cantilever brake (super low profile, silver)



Brake Levers: XC Pro  BL-XP01 reach adjuster, non-coated lever blade



Cranks:  CW-XP10 (Micro Drive) with 170/175/177.5 arms with 20/32/42 rings, 94/56 mm BCD or NEW CW-XP12 with new Power Flo Front (PFF) chain rings, and BB-SL10 bottom bracket, bottom brackets now available in 73 mm width, optional 44 and 46 tooth chain rings



Headset: New XC Pro HS-XP02-J (Japanese) or -I (Italian/English) and OS (oversize) all with Grease Guard



Other: PL-XP02 pedals (Compe type cage, cartridge bearing, cro-moly axle, single side w/ toe flip),   SP-XC00 seat post (300 mm length, 26.4, 26.6, 26.8, 27.0, 27.2),  XP-00 seat post quick release binder, Chain CH-AP01/02, Cassette cogs CS-AP20 8/7 (Micro Drive) , clipless pedal PL-XP10 (Ti axle) and PL-XP11 (Cro-moly axle) The clipless pedal is still pictured but has no part number.  I would guess that it was discontinued.



Suntour XC Expert



Rear Derailleur: XC Expert RD-XX00-GXB (long cage)-GTB (mid cage)  Suntour XC Expert printed on a derailleur body in an oval shape



Front Derailleur: XC Expert FD-XX00-GXH 28.6, 34.9 or 31.8 clamp or top pull FD-TP01-GXH



Shifters:  XC Expert SL-XX00 (8/7 speed index models), or NEW ST-ES01 Ergo Tec shifter for 8/7 speeds



Hubs: XC Expert  FH-XX00 (8/7 speed) cassette hub (quick release, 130mm  and 135mm , 32 or 36 hole with HB-XL 00F (quick release front, 32 or  36 hole)



Brakes: XC Expert CT-XX00 cantilever brake (low profile, silver)



Brake Levers:   XC Expert  BL-XX00  reach adjuster, non-coated lever blade



Cranks: XC Expert CW-XX00,Micro Drive20/32/42, 170 or 175mm arms, 94/56mm BCD  with bottom bracket BB-CB00 (English or Italian) or NEW CW-XX12 crank with Power Flo Front (PFF) chain rings



Headset: HS-ST00-J (Japan) or -I (Italian/English)



Other: PL-XL00 pedals (Compe type cage), Chain CH-AP12,  cassette CS-AP20 (8 or 7 speed cassette)



Suntour XC Sport basic group with Micro Drive or standard cranks, Ergo Tec or twist shifters



Other:  SR Duo Track forks (9001, 8001, 7001), Low fat pedals and Duo 10 I-beam type threadless stem



1995

For 1995, the XC Pro and XC Expert components are still listed as available.  The major push is the new XR (XR 50, XR 100, XR 150)series of components being promoted as "Plug and Play".  Plug and Play allows the Suntour components to be used with Shimano drivetrains.  Most of the components appear to be pretty basic and never found widespread usage.  SR Suntour forks are 9005, 8005 and 7005. Ergo Tec and Ergo Twist shifters are still offered. US sales office closes January 1,  1995.



1996

US office re-opens and concentrates on lower priced components.  I've not seen any catalog info for 1996 so I assume that there were no parts available.



1997

Pretty thin catalog for this year.  Suspension forks include the Sierra Magic 9007(with elastomer or MCU elastomers), 7007 and 8007.  Components are all Plug and Play compatible and include the Giga 450, Giga 350, XR250, XR150 and SX50.  Components are pretty much limited to derailleurs, cranks, shifters (twist or thumb), freewheels and cassettes.  Most parts look to be fairly inexpensive and I am not aware of any OE spec.  Mostly sold as inexpensive replacement parts.



1998-1999

1998 Suspension Forks:  Duo Track 6000/7007, Sierra Magic 7500/8300/8500V/9007M and MG-XC Magnesium



1998-1999 catalog: Whole slew of new forks even some triple clamp design.  New cranks (including the Superbe road crank).  The better mountain bike cranks feature a "slingshot" looking design.  Shifters, derailleurs and cassettes still available.


Component Hierarchy



1972 Front Derailleurs:



    SL (3702) - light alloy body and cage



   Compe-V (3701) - light alloy body with steel cage



   Spirt (3700) - steel body and cage



 Rear Derailleurs:



    V-Luxe (2902) - light alloy construction



   V-GT (4900) - light alloy construction



   GT (4600) - steel construction



   Honor (2600) - steel construction



   Skitter (2200) - steel construction



 1973 Front Derailleurs:



    SL (3702) - light alloy body and cage



   Compe-V (3701) - light alloy body with steel cage



   Spirt (3700) - steel body and cage



 Rear Derailleurs:



    V-Luxe (2902) - light alloy construction



   V-GT (4900) - light alloy construction



   GT (4600) - steel construction



   Honor (2600) - steel construction



   Skitter (2200) - steel construction



 1974 Front Derailleurs:



    SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    V-Luxe (RD-2200) - light alloy construction



   V-GT (RD-2400) - light alloy construction



   Seven (RD-1900) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



 1975 Front Derailleurs:



    Cyclone (FD-1300) - forged light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Cyclone (RD-1700) =96 forged light alloy construction



   V-Luxe (RD-2200) - light alloy construction



   V-GT (RD-2400) - light alloy construction



   Seven (RD-1900) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



 1976 Front Derailleurs:



    Cyclone (FD-1300) - forged light alloy body with steel cage



   Vx (FD-1600) - light alloy body with steel cage



   SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Vx (RD-2200) - light alloy construction



   V-Luxe (RD-2200) - light alloy construction



   VT (RD-2300) - light alloy construction



   V-GT (RD-2400) - light alloy construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



   Love (RD-1600) - steel construction, for use on three and five speed bikes



 1977 Front Derailleurs:



    Superbe (FD-1500) - forged light alloy body with steel cage



   Cyclone (FD-1300) - forged light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Superbe (RD-2100) - forged light alloy construction



   Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Road Vx (RD-2200) - light alloy construction



   Road Vx T (RD-2300) - light alloy construction



   Road Vx GT (RD-2400) - light alloy construction



   Road Vx S (RD-2500) - light alloy construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



   Love (RD-1600) - steel construction, for use on three and five speed bikes



 1978 Front Derailleurs:



    Superbe (FD-1500) - forged light alloy body with steel cage



   Cyclone (FD-1300) - forged light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Superbe (RD-2100) - forged light alloy construction



   Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Road Vx (RD-2200) - light alloy construction



   Road Vx GT (RD-2400) - light alloy construction



   Road Vx S (RD-2500) - light alloy construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



   Love (RD-1600) - steel construction, for use on three and five speed bikes



 1979 Front Derailleurs:



    Superbe (FD-1500) - forged light alloy body with steel cage



   Cyclone (FD-1300) - forged light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   SL (FD-1200) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Superbe (RD-2100) - forged light alloy construction



   Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Road Vx (RD-2200) - light alloy construction



   Road Vx GT (RD-2400) - light alloy construction



   Road Vx S (RD-2500) - light alloy construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Skitter (RD-1000) - steel construction



   Love (RD-1600) - steel construction, for use on three and five speed bikes



 1980 Front Derailleurs:



    Superbe Pro (FD-2000 clamp-on / FD-2050 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Superbe (FD-1500) - forged light alloy body with steel cage



   Cyclone Mark-II (FD-2300 clamp-on / FD-2350 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Cyclone Mark-II (FD-2400) - forged light alloy body, steel cage



   Cyclone (FD-1300) - forged light alloy body with steel cage



   AG (FD-2100) - light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   NSL (FD-1700) - light alloy body and cage



   Mighty Click 10 - light alloy body with steel cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



   BL (FD-1900) - light alloy body with steel cage



 Rear Derailleurs:



    Superbe Pro (RD-3100) - forged light alloy construction



   Superbe (RD-2100) - forged light alloy construction



   Cyclone Mark-II (RD-3500) =96 forged light alloy body and cage



   Cyclone Mark-II (RD-3700) =96 forged light alloy body and cage



   Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Road Vx (RD-2200) - light alloy construction



   Road Vx GT (RD-2400) - light alloy construction



   Road Vx S (RD-2500) - light alloy construction



   V-GT (RD-1500) - light alloy construction



   BL Short Cage (RD-3200) - light alloy construction



   BL Long Cage (RD-3300) - light alloy construction



   BL Medium Cage (RD-3600) - light alloy construction



   Volante (RD-2600) - light alloy and steel construction



   Volante-S (RD-4100) - light alloy and steel construction



   AG (RD-3400) - light alloy construction



   Mighty Click (RD-2700) - light alloy and steel construction



   Mighty Click GT (RD-2800) - light alloy and steel construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



 1981 Front Derailleurs:



    Superbe Pro (FD-2000 clamp-on / FD-2050 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Superbe (FD-1500) - forged light alloy body with steel cage



   Cyclone Mark-II (FD-2300 clamp-on / FD-2350 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Cyclone Mark-II (FD-2400) - forged light alloy body, steel cage



   Cyclone (FD-1300) - forged light alloy body with steel cage



   AG (FD-2100) - light alloy body with steel cage



   Road Vx (FD-1600) - light alloy body with steel cage



   NSL (FD-1700) - light alloy body and cage



   Mighty Click 10 - light alloy body with steel cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



   ARX (FD-2600) - light alloy body with steel cage



   AR (FD-2500) - light alloy body with steel cage



   BL (FD-1900) - light alloy body with steel cage



 Rear Derailleurs:



    Superbe Pro (RD-3100) - forged light alloy construction



   Superbe (RD-2100) - forged light alloy construction



   Cyclone Mark-II (RD-3500) =96 forged light alloy body and cage



   Cyclone Mark-II (RD-3700) =96 forged light alloy body and cage



   Cyclone (RD-1700) =96 forged light alloy construction



   Cyclone-GT (RD-1800) - forged light alloy construction



   Road Vx (RD-2200) - light alloy construction



   Road Vx GT (RD-2400) - light alloy construction



   Road Vx S (RD-2500) - light alloy construction



   V-GT (RD-1500) - light alloy construction



   ARX (RD-4300) - light alloy construction



   ARX Long Cage (RD-4500) - light alloy construction



   AR (RD-4200) - light alloy construction



   AR Long Cage (RD-4400) - light alloy construction



   BL Short Cage (RD-3200) - light alloy construction



   BL Long Cage (RD-3300) - light alloy construction



   BL Medium Cage (RD-3600) - light alloy construction



   Volante (RD-2600) - light alloy and steel construction



   Volante-S (RD-4100) - light alloy and steel construction



   AG (RD-3400) - light alloy construction



   Mighty Click (RD-2700) - light alloy and steel construction



   Mighty Click GT (RD-2800) - light alloy and steel construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



 1982 Front Derailleurs:



    Superbe Pro (FD-2000 clamp-on / FD-2050 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Superbe (FD-3000) - forged light alloy body, steel cage, clamp band



   Cyclone Mark-II (FD-2300 clamp-on / FD-2350 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Cyclone Mark-II (FD-2400) - forged light alloy body, steel cage



   MounTech (FD-2700) - light alloy body with steel cage



   AG (Alpine Gear) Tech (FD-2800) - light alloy body with steel cage



   Vx (FD-1600) - light alloy body with steel cage



   ARX (FD-2600) - light alloy body with steel cage



   AR (FD-2500) - light alloy body with steel cage



   BL (FD-1900) - light alloy body with steel cage



   Trimec (FD-2900) - light alloy body with steel cage



   NSL (FD-1700) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Superbe Pro (RD-5200) - forged light alloy construction



   Superbe (RD-5300) - forged light alloy construction



   Superbe Tech (RD-4700) - forged light alloy body and cage



   Superbe Tech L (RD-4800) - forged light alloy body and cage



   Superbe Tech GTL (RD-5400) - forged light alloy body and cage



   Cyclone Mark-II (RD-3500) - forged light alloy body and cage



   Cyclone Mark-II (RD-3700) - forged light alloy body and cage



   MounTech (RD-4900) - light alloy construction



    MounTech-GTL (RD-5500) - light alloy construction



   AG (Alpine Gear) Tech (RD-5000) - light alloy construction



   AG (Alpine Gear) Tech GTL (RD-5000) - light alloy construction



   Vx (RD-2200) - light alloy construction



   Vx GT (RD-2400) - light alloy construction



   Vx S (RD-2500) - light alloy construction



   ARX (RD-4300) - light alloy construction



   ARX Long Cage (RD-4500) - light alloy construction



   AR (RD-4200) - light alloy construction



   AR Long Cage (RD-4400) - light alloy construction



   BL Short Cage (RD-3200) - light alloy construction



   BL Long Cage (RD-3300) - light alloy construction



   BL Medium Cage (RD-3600) - light alloy construction



   Volante (RD-2600) - light alloy and steel construction



   Trimec (RD-4600) - light alloy and steel construction



   Mighty Click (RD-2700) - light alloy and steel construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Cap (RD-5100) - light alloy and steel construction, for use on three and five speed bikes



 1983 Front Derailleurs:



    Superbe Pro (FD-2000 clamp-on / FD-2050 braze-on) - forged light alloy body, steel cage, stainless steel clamp band



   Superbe (FD-3000) - forged light alloy body, steel cage, clamp band



   Cyclone Mark-II (FD-2300 clamp-on / FD-2350 braze-on) light alloy body, steel cage, stainless steel clamp band



   Cyclone Mark-II (FD-2400) - forged light alloy body, steel cage



   MounTech (FD-2700) - light alloy body with steel cage



   AG (Alpine Gear) Tech (FD-2800) - light alloy body with steel cage



   Vx (FD-1600) - light alloy body with steel cage



   ARX (FD-2600) - light alloy body with steel cage



   AR (FD-2500) - light alloy body with steel cage



   BL (FD-1900) - light alloy body with steel cage



   Trimec (FD-2900) - light alloy body with steel cage



   NSL (FD-1700) - light alloy body and cage



   Seven (FD-1400) - light alloy body with steel cage



   Compe-V (FD-1100) - light alloy body with steel cage



   Spirt (FD-1000) - steel body and cage



 Rear Derailleurs:



    Superbe Pro (RD-5200) - forged light alloy construction



   Superbe (RD-5300) - forged light alloy construction



   Superbe Tech (RD-4700) - forged light alloy body and cage



   Superbe Tech L (RD-4800) - forged light alloy body and cage



   Superbe Tech GTL (RD-5400) - forged light alloy body and cage



   Cyclone Mark-II (RD-3500) - forged light alloy body and cage



   Cyclone Mark-II (RD-3700) - forged light alloy body and cage



   MounTech (RD-4900) - light alloy construction



    MounTech-GTL (RD-5500) - light alloy construction



   AG (Alpine Gear) Tech (RD-5000) - light alloy construction



   AG (Alpine Gear) Tech GTL (RD-5000) - light alloy construction



   Vx (RD-2200) - light alloy construction



   Vx GT (RD-2400) - light alloy construction



   Vx S (RD-2500) - light alloy construction



   ARX (RD-4300) - light alloy construction



   ARX Long Cage (RD-4500) - light alloy construction



   AR (RD-4200) - light alloy construction



   AR Long Cage (RD-4400) - light alloy construction



   BL Short Cage (RD-3200) - light alloy construction



   BL Long Cage (RD-3300) - light alloy construction



   BL Medium Cage (RD-3600) - light alloy construction



   Volante (RD-2600) - light alloy and steel construction



   Trimec (RD-4600) - light alloy and steel construction



   Mighty Click (RD-2700) - light alloy and steel construction



   Seven (RD-1900) - steel construction



   Seven-GT (RD-2000) - steel construction



   GT (RD-1200) - steel construction



   Honor (RD-1100) - steel construction



   Cap (RD-5100) - light alloy and steel construction, for use on three and five speed bikes
